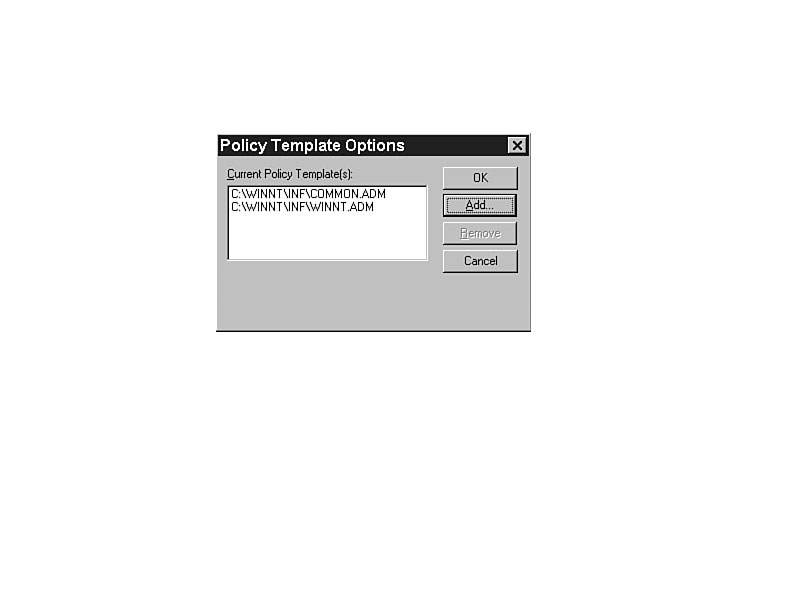

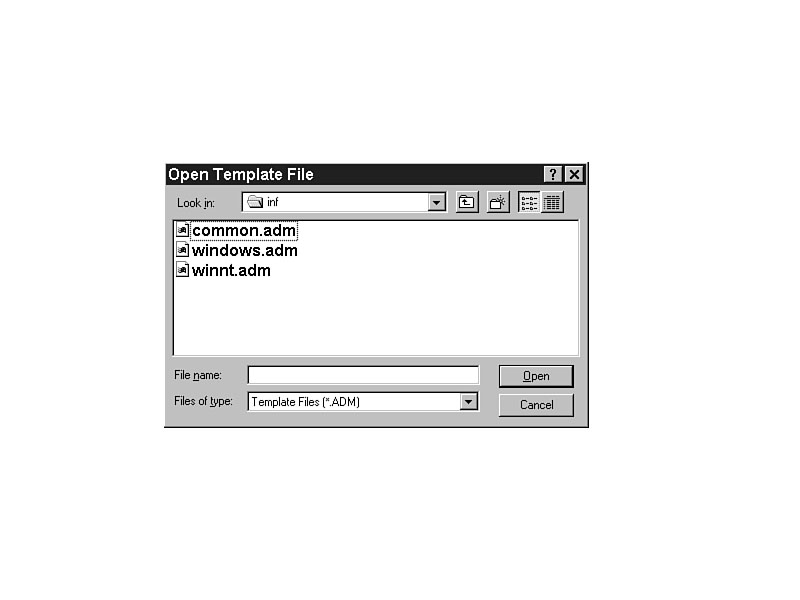

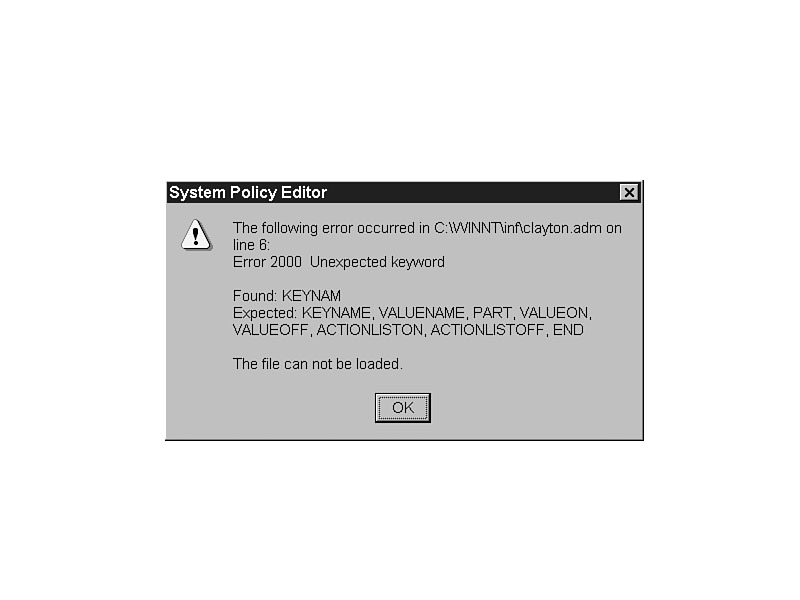

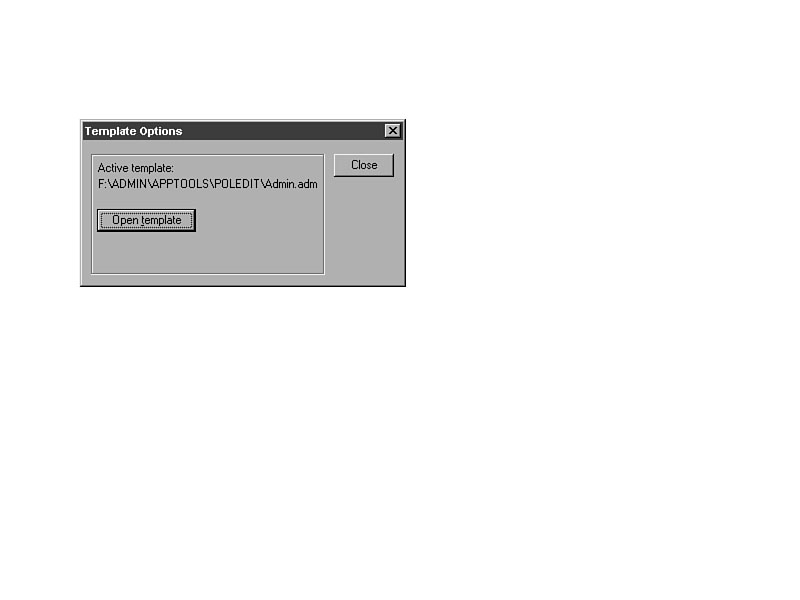

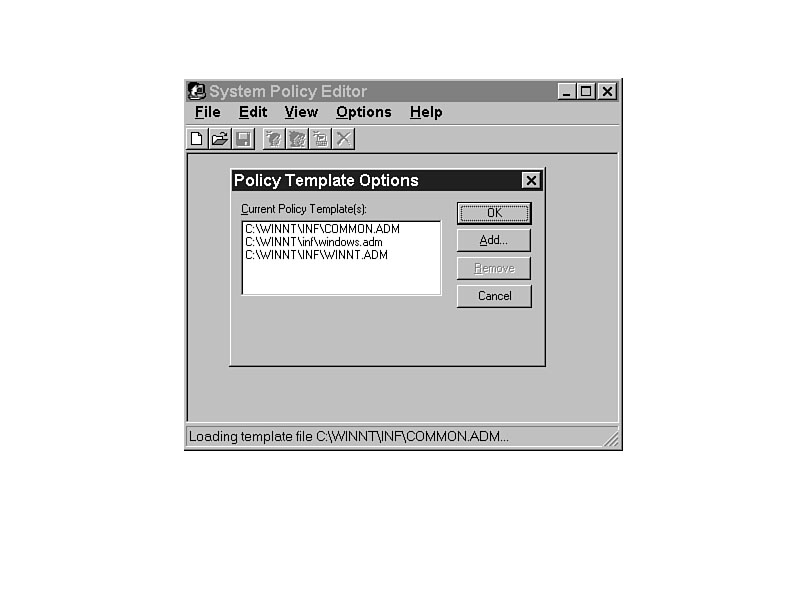

Troubleshooting and Configuring the Windows NT/95 Registry -29- System Policy Editor:Understanding Template Files Whereas a policy file includes the actual implemented changes for systems and users on the network, template files include the possible changes to be made. Each Registry change is listed in the file with the same information you would need to edit the Registry directly. System Policy Editor reads the template and translates the difficult language into a Windows-based, Explorer-like list of changes that can be made. The templates for Windows NT are located in the \WINNT\Inf directory and all have an .ADM extension. (See Figure 29.1.) They are text files that can be viewed and edited with Notepad or WordPad. Figure 29.1. The .ADM files in the \WINNT\Inf directory. In Windows 95, the System Policy Editor uses the template called ADMIN.ADM by default. Any additions or changes are normally made to that file. It is a little more difficult to troubleshoot if there are any errors because all settings are in one file, and it is quite lengthy. You may use any template file with the 95 System Policy Editor, but you can only use one file. To change the template file, select Options | Template | Open template, and browse for the desired file. TIP: The option to use a different template file is a great help in preparing template files for use in Windows 95. Rather than putting all the new settings directly into ADMIN.ADM and having to edit a large file, simply put the settings in a new small file. Open the template, test it, and when it is exactly correct, append it to the ADMIN.ADM file. Windows NT System Policy Editor seems to have learned from that limitation, because it allows you to use as many templates as you like, and they can be named anything you desire. That seemingly small difference makes a huge difference in actual day-to-day use. TIP: When you create your own template files, make them as small as possible. Small template files load more quickly and are easier to troubleshoot. If you are going to use Windows 95, append the small file onto the end of the current ADMIN.ADM file. By default, NT looks for .ADM files in the \WINNT\Inf directory. If you put them elsewhere, it may take you longer to find them, particularly if you have to go to multiple places to retrieve them. Importing Templates into System Policy Editor To import a template file into System Policy Editor, select Options | Policy Template. In Windows NT, the dialog box shown in Figure 29.2 appears, giving you options to add or remove templates from the list of currently loading templates. Figure 29.2. The Policy Template Options dialog box in Windows NT. You can add as many files as you like. Even if the files you add are not valid template files, they will show in the list. In Windows 95, with its limitation of a single template file, the dialog box is slightly different, as shown in Figure 29.3. Figure 29.3. The Template Options dialog box in Windows 95. When you click OK at the Policy Template Options dialog box, System Policy Editor imports the template file. If the syntax is correct in the entries, System Policy Editor imports them, showing you the status of the file update on the status line. (See Figure 29.4.) The template files are not case-sensitive, but it is critical to have the correct syntax, or structure. Incorrect syntax prevents the file from loading (as shown in Figure 29.5) and returns an error message regarding the type of error and the line on which it occurred. Figure 29.4. The template files loading into System Policy Editor. Figure 29.5. Faulty template files do not load into System Policy Editor. TIP: Imagine the challenge associated with finding an error on line 126. Make short template files for easier editing The template file loads into System Policy Editor if the syntax is correct. If the keys or values are not in the Registry when System Policy Editor updates it, they are created. If the entries have no validity for the operating system, they are ignored by the Registry. After the templates are loaded, you can use them by opening a current policy file or by creating a new one. The only available entries are those that are from the template. When you save the policy file over the top of an existing file, it does not save all the entries, just the ones that relate to the current template file. TIP: To ensure that your policy will always be in place, add template files but don't remove them. If you remove a template file, the settings associated with that template are not saved. Default Templates in Windows NT 4.0 Three default templates come with Windows NT 4.0: COMMON.ADM, WINNT.ADM, and WINDOWS.ADM. Because the System Policy Editor does not work with Windows 95 systems, the WINDOWS.ADM file will not be discussed in depth here. It was developed so it could be used in creating a single policy for both NT and 95. It actually has no value now because the policies are not compatible. SOLUTIONS: If the policy files in Windows NT and Windows 95 are not compatible, why did Microsoft supply us with the WINDOWS.ADM file? I am sure it was the original intent of the developers to make one System Policy Editor (the one released with NT 4.0) that could manage all the policies for NT and 95. It appears as though they finished the project, and then someone else came in and imposed changes on them. It would be just as easy as forcing the policies to be in Unicode. Unicode policies could be used in a multilanguage environment and are also more difficult to edit directly, giving a tiny bit of additional security. If the policies could have been retained as ASCII, one editor and one policy file could have done it all. Using COMMON.ADM COMMON.ADM is the template file for Registry entries that are the same for Windows NT 4.0 and Windows 95. Placing these entries in a single file reduces the likelihood of error and duplication. In the System Policy Editor, these entries are shown with no designation for the operating system. The entries in COMMON.ADM (shown in Figure 29.6) that affect the computer system settings are limited to the location of the policy file, SNMP (Simple Network Management Protocol), and executable files to run at startup. NOTE: Even though the COMMON.ADM file includes settings that would work for Windows 95, the policy files created by System Policy Editor in NT 4.0 are not compatible with Windows 95. As you can see in Figures 29.7 and 29.8, many more entries are associated with users than with the computers in COMMON.ADM. Most of the system-specific entries are also associated directly with the operating system. Figure 29.6. System-specific entries in COMMON.ADM. Figure 29.7. User-specific entries in COMMON.ADM. Figure 29.8. User-specific Shell Restriction entries in COMMON.ADM. The common entries in the user-specific listing illustrate the great similarity of the user interfaces for NT 4.0 and 95. Most of these entries deal with restrictions placed on users. Of course, how completely you implement these restrictions depends on the experience level of users in your organization. Using WINNT.ADM WINNT.ADM is the template file that holds the Windows NT-specific entries for users and computer systems. These entries, even if written into the Windows 95 Registry, would have no effect on the Windows 95 Registry. Certainly, the requirement for separate files, and differences in the locations and types of entries in the files, indicate that there are still many significant differences between the operating systems and Registries. The focus and implementation of NT 4.0 and 95 are significantly different even though, from the outside, NT 4.0 and 95 look the same. Also, notice that the number of system-specific entries far outpaces the user options. (See Figures 29.9 through 29.11.) Figure 29.9. Some system-specific entries in WINNT.ADM. Figure 29.10. More system-specific entries in WINNT.ADM. Figure 29.11. The last of the system-specific entries in WINNT.ADM. The ability to customize the NT systems on your network is fabulous. Compared to the customization options available in NT 3.5x, you have tremendous control. The best part is that it all comes in System Policy Editor, allowing you to make all these network-system changes from one location. The options for managing and restricting users through System Policy Editor are shown in Figures 29.12 and 29.13. NOTE: Chapter 31, "Managing Domain Computers with System Policy Editor," and Chapter 30, "Managing the Local Registry with System Policy Editor," discuss these entries in more detail and make recommendations for implementation. Together, COMMON.ADM and WINNT.ADM provide the framework for settings for system and user restrictions with System Policy Editor. Figure 29.12. User options in WINNT.ADM. Figure 29.13. More user options in WINNT.ADM. Default Template in Windows 95 Windows 95 uses the template called ADMIN.ADM. It has the same entries as COMMON.ADM in Windows NT, plus more. Those additional entries were included in Windows NT as WINDOWS.ADM. Like the template files in NT, ADMIN.ADM contains settings for both system and user Registries. Using ADMIN.ADM ADMIN.ADM was the first of the template files for the System Policy Editor. It is exclusive to Windows 95, although there are some overlapping entries![Ydieresis]th the COMMON.ADM template in NT 4.0. This template is critical to proper management of Windows 95 systems in organizations where any sort of standardization and security is required. Without the imposition of a policy, Windows 95 users can do nearly anything they want to, much to the chagrin of system administrators and technical support. The options for computer-based system policies are illustrated in Figures 29.14 through Figure 29.17. Additional detail about each of the settings is in Chapter 33, "Managing Windows 95 Users with System Policy Editor." Figure 29.14 shows the available policies for Network access control, logon functions, and the NetWare client. Figure 29.15 shows the Microsoft client policy options, plus the options for File and Print sharing for NetWare networking, passwords, and dial-up network restrictions. Sharing functions in Microsoft networking, SNMP, and policy file location (Remote Update) functions are shown in Figure 29.16. Figure 29.14. Some of the computer policies in ADMIN.ADM. Figure 29.15. Computer policies in ADMIN.ADM affect client policy options. Figure 29.16. Computer policies in ADMIN.ADM affect sharing and SNMP. System policy modifications are shown in Figure 29.17. Figure 29.17. System options from ADMIN.ADM computer policies . The basic premise of user-based settings in the policies for Windows 95 is restrictions. As a stand-alone system, if the user takes liberties with his system, it may mean that the user is down, if the system crashes. Attach that same system to a network, and the potential problems are magnified. Figure 29.18 shows some of the restrictions that could be imposed on users with System Policy Editor. Additional detail is available in Chapter 33. Figure 29.18. Some of the user restriction policies in ADMIN.ADM. Figure 29.19 shows the desktop and network sharing restrictions in the ADMIN.ADM template and System Policy Editor. Figure 29.19. Additional user restriction policies in ADMIN.ADM. Changing what the users will see in their Windows 95 desktop is the purpose of the template options in Figure 29.20. Figure 29.20. Customization options in ADMIN.ADM. Shell restrictions (shown in Figure 29.21) can radically change the available options for the Windows 95 user. Some of the harsher restrictions are shown in Figure 29.22 as the administrator can remove many options from the user with System Policy Editor. Together, the policies available for Windows 95 systems and users can create quite a tight policy, and make 95 systems very acceptable systems for working on a network as part of a standards-based organization. Figure 29.21. Shell restriction policies in ADMIN.ADM. Figure 29.22. Additional restriction policies in ADMIN.ADM. SOLUTIONS: Why are there so many more policies for Windows 95 systems than for Windows NT systems? I thought they were almost the same thing. Windows NT systems were designed from the ground up with the capability for system administrators to manage and control them. Windows 95 was designed as a single-user system, with networking and standards compliance features "tacked on." In order to effectively manage Windows 95 systems in an organization, more is required, hence the greater number of policies available. ADM File Structure The required syntax for a template file is critical for understanding current files and for creating new files. CLASS, KEYNAME, and VALUENAME hold the actual information that will change the Registry. CATEGORY, POLICY, and PART are used to create the interface of the System Policy Editor. CLASS This setting determines whether the change affects HKEY_LOCAL_MACHINE or HKEY_CURRENT_USER (for the named user). As many categories as desired can be under this heading. CATEGORY This setting sets the text for initial headings and groups multiple policies for ease of use and editing. CATEGORY settings are shown in the System Policy Editor as a book. There can be as many layers of categories as desired, because they are used to create the hierarchical structure in the interface. An END CATEGORY entry is required to close the CATEGORY. POLICY POLICY entries are the actual selections that you can choose. They are shown with a check box. An END POLICY entry is required to close the POLICY. KEYNAME For each of the policies, there needs to be a key name and at least one value. The KEYNAME entry does not include the handle key name. TIP: Do not start the KEYNAME with a backslash (\). Instead, start with the key below the handle key. If you start with a backslash, the setting will not be recognized in the Registry even though an error will not occur in the importing of the file. VALUENAME The VALUENAME is the same as in the Registry. PART The data for the values and the type of System Policy Editor entry desired are listed in PART. An END PART entry is required to close the PART. Strings Strings are shown in the .ADM file starting with a double exclamation (!!). The text following the double exclamation cannot include a space. The text listed in the [Strings] section replaces the entry in System Policy Editor. An alternative is to simply put the text in quotation marks. Figure 29.23 shows all the syntax components of a template file. Note that the CATEGORY, POLICY, and PART entries all have a corresponding END component as well. Figure 29.23. Syntax for .ADM files. Each of the corresponding parts of the System Policy Editor screen is generated by the .ADM file. An example from the WINNT.ADM file is shown in Figure 29.24. TIP: One of the most common mistakes for creators of template files is the omission of the closing entry. For every CATEGORY, there must be an END CATEGORY. For every POLICY, there must be an END POLICY. For every PART, there must be an END PART. Figure 29.24. Each section of the .ADM file affects the System Policy Editor screen. Contents of COMMON.ADM With these standard template files, it is possible to learn a great deal about the Registry and entries that can be made. Use these steps to find the actual Registry setting being made by the System Policy Editor. 1. Open .ADM file. 2. Search for text from System Policy Editor screen. 3. If it is in [Strings], search for string text. TIP: The text around the found text is the actual change in the Registry. After the desired policy has been found, note the KEYNAME, the VALUENAME, and the action that will happen when the policy is activated. COMMON.ADM has just a few settings for the computer. Because these functions were designed to work with both Windows NT and Windows 95, the criteria for inclusion in COMMON.ADM are stringent. Only functions that both can use and only Registry settings that are exactly the same can be included. NOTE: The fact that the System Policy Editor for NT cannot prepare or edit policies for Windows 95 makes COMMON.ADM peculiar. Obviously, in the design phase of System Policy Editor, there was the full intention of making the policies compatible. Somewhere along the line, a decision was made to change the policy file to Unicode, and all the collaboration and partnership work was for naught. There are many more settings in COMMON.ADM for the user because of the shared interface with Windows NT and Windows 95. Note that many of the Registry changes simply add values. Those values are just some of the undocumented items that can be placed in the Registry. Of course, one of the most important parts of the policies is the restrictions that can be placed on users. In Listing 29.1, all the Registry locations and values are listed. If a restricted user was to get access to this file, he could read the entries, and make changes to remove restrictions. The .ADM files are stored in the \WINNT\INF folder. Restrict access to increase security. Listing 29.1. COMMON.ADM. CLASS MACHINE CATEGORY !!Network CATEGORY !!Update POLICY !!RemoteUpdate KEYNAME System\CurrentControlSet\Control\Update ACTIONLISTOFF VALUENAME "UpdateMode" VALUE NUMERIC 0 END ACTIONLISTOFF PART !!UpdateMode DROPDOWNLIST REQUIRED VALUENAME "UpdateMode" ITEMLIST NAME !!UM_Automatic VALUE NUMERIC 1 NAME !!UM_Manual VALUE NUMERIC 2 END ITEMLIST END PART PART !!UM_Manual_Path EDITTEXT VALUENAME "NetworkPath" END PART PART !!DisplayErrors CHECKBOX VALUENAME "Verbose" END PART PART !!LoadBalance CHECKBOX VALUENAME "LoadBalance" END PART END POLICY END CATEGORY ; Update END CATEGORY ; Network CATEGORY !!System CATEGORY !!SNMP POLICY !!Communities KEYNAME System\CurrentControlSet\Services\SNMP\Parameters\ ValidCommunities PART !!CommunitiesListbox LISTBOX VALUEPREFIX "" END PART END POLICY POLICY !!PermittedManagers KEYNAME System\CurrentControlSet\Services\SNMP\Parameters\ PermittedManagers PART !!PermittedManagersListbox LISTBOX VALUEPREFIX "" END PART END POLICY POLICY !!Traps_Public KEYNAME System\CurrentControlSet\Services\SNMP\Parameters\ TrapConfiguration\Public PART !!Traps_PublicListbox LISTBOX VALUEPREFIX "" END PART END POLICY END CATEGORY ; SNMP CATEGORY !!Run POLICY !!Run KEYNAME Software\Microsoft\Windows\CurrentVersion\Run PART !!RunListbox LISTBOX EXPLICITVALUE END PART END POLICY END CATEGORY END CATEGORY ; System CLASS USER CATEGORY !!ControlPanel CATEGORY !!CPL_Display POLICY !!CPL_Display_Restrict KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies\System PART !!CPL_Display_Disable CHECKBOX VALUENAME NoDispCPL END PART PART !!CPL_Display_HideBkgnd CHECKBOX VALUENAME NoDispBackgroundPage END PART PART !!CPL_Display_HideScrsav CHECKBOX VALUENAME NoDispScrSavPage END PART PART !!CPL_Display_HideAppearance CHECKBOX VALUENAME NoDispAppearancePage END PART PART !!CPL_Display_HideSettings CHECKBOX VALUENAME NoDispSettingsPage END PART END POLICY END CATEGORY ; Display END CATEGORY ; Control Panel CATEGORY !!Desktop KEYNAME "Control Panel\Desktop" POLICY !!Wallpaper PART !!WallpaperName EDITTEXT VALUENAME "Wallpaper" END PART PART !!WALLPAPER_ TIP 1 TEXT END PART PART !!WALLPAPER_ TIP 2 TEXT END PART PART !!TileWallpaper CHECKBOX DEFCHECKED VALUENAME "TileWallpaper" VALUEON "1" VALUEOFF "0" END PART END POLICY POLICY !!ColorScheme PART !!SchemeName DROPDOWNLIST KEYNAME "Control Panel\Appearance" VALUENAME Current REQUIRED ITEMLIST NAME !!Lavender VALUE !!Lavender ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "174 168 217" VALUENAME ActiveTitle VALUE "128 128 128" VALUENAME AppWorkspace VALUE "90 78 177" VALUENAME Background VALUE "128 128 192" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "174 168 217" VALUENAME ButtonHilight VALUE "216 213 236" VALUENAME ButtonLight VALUE "174 168 217" VALUENAME ButtonShadow VALUE "90 78 177" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "90 78 177" VALUENAME Hilight VALUE "128 128 128" VALUENAME HilightText VALUE "255 255 255" VALUENAME InactiveBorder VALUE "174 168 217" VALUENAME InactiveTitle VALUE "90 78 177" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "174 168 217" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "174 168 217" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "174 168 217" VALUENAME TitleText VALUE "255 255 255" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!Tan256 VALUE !!Tan256 ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "202 184 149" VALUENAME ActiveTitle VALUE "0 0 0" VALUENAME AppWorkspace VALUE "156 129 78" VALUENAME Background VALUE "128 64 64" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "202 184 149" VALUENAME ButtonHilight VALUE "228 220 203" VALUENAME ButtonLight VALUE "202 184 149" VALUENAME ButtonShadow VALUE "156 129 78" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "156 129 78" VALUENAME Hilight VALUE "0 0 0" VALUENAME HilightText VALUE "255 255 255" VALUENAME InactiveBorder VALUE "202 184 149" VALUENAME InactiveTitle VALUE "156 129 78" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "202 184 149" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "202 184 149" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "202 184 149" VALUENAME TitleText VALUE "255 255 255" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!Wheat256 VALUE !!Wheat256 ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "215 213 170" VALUENAME ActiveTitle VALUE "0 0 0" VALUENAME AppWorkspace VALUE "173 169 82" VALUENAME Background VALUE "0 64 64" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "215 213 170" VALUENAME ButtonHilight VALUE "235 234 214" VALUENAME ButtonLight VALUE "215 213 170" VALUENAME ButtonShadow VALUE "173 169 82" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "173 169 82" VALUENAME Hilight VALUE "0 0 0" VALUENAME HilightText VALUE "255 255 255" VALUENAME InactiveBorder VALUE "215 213 170" VALUENAME InactiveTitle VALUE "173 169 82" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "215 213 170" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "215 213 170" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "215 213 170" VALUENAME TitleText VALUE "255 255 255" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!Celery VALUE !!Celery ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "168 215 170" VALUENAME ActiveTitle VALUE "0 0 0" VALUENAME AppWorkspace VALUE "80 175 85" VALUENAME Background VALUE "32 18 46" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "168 215 170" VALUENAME ButtonHilight VALUE "211 235 213" VALUENAME ButtonLight VALUE "168 215 170" VALUENAME ButtonShadow VALUE "85 175 85" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "80 175 85" VALUENAME Hilight VALUE "0 0 0" VALUENAME HilightText VALUE "255 255 255" VALUENAME InactiveBorder VALUE "168 215 170" VALUENAME InactiveTitle VALUE "80 175 75" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "168 215 170" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "168 215 170" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "168 215 170" VALUENAME TitleText VALUE "255 255 255" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!Rose VALUE !!Rose ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "207 175 183" VALUENAME ActiveTitle VALUE "128 128 128" VALUENAME AppWorkspace VALUE "159 96 112" VALUENAME Background VALUE "128 64 64" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "207 175 183" VALUENAME ButtonHilight VALUE "231 216 220" VALUENAME ButtonLight VALUE "207 175 183" VALUENAME ButtonShadow VALUE "159 96 112" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "159 96 112" VALUENAME Hilight VALUE "128 128 128" VALUENAME HilightText VALUE "255 255 255" VALUENAME InactiveBorder VALUE "207 175 183" VALUENAME InactiveTitle VALUE "159 96 112" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "207 175 183" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "207 175 183" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "207 175 183" VALUENAME TitleText VALUE "255 255 255" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!Evergreen VALUE !!Evergreen ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "47 151 109" VALUENAME ActiveTitle VALUE "0 0 0" VALUENAME AppWorkspace VALUE "31 101 73" VALUENAME Background VALUE "48 63 48" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "47 151 109" VALUENAME ButtonHilight VALUE "137 218 186" VALUENAME ButtonLight VALUE "47 151 109" VALUENAME ButtonShadow VALUE "31 101 73" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "31 101 73" VALUENAME Hilight VALUE "0 0 0" VALUENAME HilightText VALUE "255 255 255" VALUENAME InactiveBorder VALUE "47 151 109" VALUENAME InactiveTitle VALUE "31 101 73" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "47 151 109" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "47 151 109" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "47 151 109" VALUENAME TitleText VALUE "255 255 255" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!Blues VALUE !!Blues ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "161 198 221" VALUENAME ActiveTitle VALUE "0 0 0" VALUENAME AppWorkspace VALUE "69 139 186" VALUENAME Background VALUE "0 0 64" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "164 198 221" VALUENAME ButtonHilight VALUE "210 227 238" VALUENAME ButtonLight VALUE "164 198 221" VALUENAME ButtonShadow VALUE "69 139 186" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "69 139 186" VALUENAME Hilight VALUE "0 0 0" VALUENAME HilightText VALUE "255 255 255" VALUENAME InactiveBorder VALUE "164 198 221" VALUENAME InactiveTitle VALUE "69 139 186" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "164 198 221" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "164 198 221" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "164 198 221" VALUENAME TitleText VALUE "255 255 255" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!Teal VALUE !!Teal ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "192 192 192" VALUENAME ActiveTitle VALUE "0 128 128" VALUENAME AppWorkspace VALUE "128 128 128" VALUENAME Background VALUE "0 64 64" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "192 192 192" VALUENAME ButtonHilight VALUE "255 255 255" VALUENAME ButtonLight VALUE "192 192 192" VALUENAME ButtonShadow VALUE "128 128 128" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "128 128 128" VALUENAME Hilight VALUE "0 128 128" VALUENAME HilightText VALUE "255 255 255" VALUENAME InactiveBorder VALUE "192 192 192" VALUENAME InactiveTitle VALUE "192 192 192" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "192 192 192" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "192 192 192" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "192 192 192" VALUENAME TitleText VALUE "0 0 0" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!TheReds VALUE !!TheReds ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "192 192 192" VALUENAME ActiveTitle VALUE "128 0 0" VALUENAME AppWorkspace VALUE "128 128 128" VALUENAME Background VALUE "64 0 0" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "192 192 192" VALUENAME ButtonHilight VALUE "255 255 255" VALUENAME ButtonLight VALUE "192 192 192" VALUENAME ButtonShadow VALUE "128 128 128" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "128 128 128" VALUENAME Hilight VALUE "128 0 0" VALUENAME HilightText VALUE "255 255 255" VALUENAME InactiveBorder VALUE "192 192 192" VALUENAME InactiveTitle VALUE "192 192 192" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "192 192 192" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "192 192 192" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "192 192 192" VALUENAME TitleText VALUE "255 255 255" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!WindowsDefault VALUE !!WindowsDefault ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "192 192 192" VALUENAME ActiveTitle VALUE "0 0 128" VALUENAME AppWorkspace VALUE "128 128 128" VALUENAME Background VALUE "0 128 128" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "192 192 192" VALUENAME ButtonHilight VALUE "255 255 255" VALUENAME ButtonLight VALUE "192 192 192" VALUENAME ButtonShadow VALUE "128 128 128" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "128 128 128" VALUENAME Hilight VALUE "0 0 128" VALUENAME HilightText VALUE "255 255 255" VALUENAME InactiveBorder VALUE "192 192 192" VALUENAME InactiveTitle VALUE "192 192 192" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "192 192 192" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "192 192 192" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "192 192 192" VALUENAME TitleText VALUE "255 255 255" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!BlueAndBlack VALUE !!BlueAndBlack ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "192 192 192" VALUENAME ActiveTitle VALUE "0 0 0" VALUENAME AppWorkspace VALUE "128 128 128" VALUENAME Background VALUE "0 0 128" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "192 192 192" VALUENAME ButtonHilight VALUE "255 255 255" VALUENAME ButtonLight VALUE "192 192 192" VALUENAME ButtonShadow VALUE "128 128 128" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "128 128 128" VALUENAME Hilight VALUE "255 255 0" VALUENAME HilightText VALUE "0 0 0" VALUENAME InactiveBorder VALUE "192 192 192" VALUENAME InactiveTitle VALUE "192 192 192" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "192 192 192" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "192 192 192" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "192 192 192" VALUENAME TitleText VALUE "255 255 255" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!Wheat VALUE !!Wheat ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "192 192 192" VALUENAME ActiveTitle VALUE "128 128 0" VALUENAME AppWorkspace VALUE "128 128 128" VALUENAME Background VALUE "128 128 64" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "192 192 192" VALUENAME ButtonHilight VALUE "255 255 255" VALUENAME ButtonLight VALUE "192 192 192" VALUENAME ButtonShadow VALUE "128 128 128" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "128 128 128" VALUENAME Hilight VALUE "128 128 0" VALUENAME HilightText VALUE "0 0 0" VALUENAME InactiveBorder VALUE "192 192 192" VALUENAME InactiveTitle VALUE "192 192 192" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "192 192 192" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "192 192 192" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "192 192 192" VALUENAME TitleText VALUE "0 0 0" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST END ITEMLIST END PART END POLICY END CATEGORY ; Desktop CATEGORY !!Shell CATEGORY !!Restrictions KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies\Explorer POLICY !!RemoveRun VALUENAME "NoRun" END POLICY POLICY !!RemoveFolders VALUENAME "NoSetFolders" END POLICY POLICY !!RemoveTaskbar VALUENAME "NoSetTaskbar" END POLICY POLICY !!RemoveFind VALUENAME "NoFind" END POLICY POLICY !!HideDrives VALUENAME "NoDrives" VALUEON NUMERIC 67108863 ; low 26 bits on (1 bit per drive) END POLICY POLICY !!HideNetHood VALUENAME "NoNetHood" END POLICY POLICY !!NoEntireNetwork KEYNAME Software\Microsoft\Windows\CurrentVersion\ Policies\Network VALUENAME "NoEntireNetwork" END POLICY POLICY !!NoWorkgroupContents KEYNAME Software\Microsoft\Windows\CurrentVersion\ Policies\Network VALUENAME "NoWorkgroupContents" END POLICY POLICY !!HideDesktop VALUENAME "NoDesktop" END POLICY POLICY !!DisableClose VALUENAME "NoClose" END POLICY POLICY !!NoSaveSettings VALUENAME "NoSaveSettings" END POLICY END CATEGORY END CATEGORY ; Shell CATEGORY !!System KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies\System CATEGORY !!Restrictions POLICY !!DisableRegedit VALUENAME DisableRegistryTools END POLICY POLICY !!RestrictApps KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies\Explorer VALUENAME RestrictRun PART !!RestrictAppsList LISTBOX KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies \Explorer\RestrictRun VALUEPREFIX "" END PART PART !!RestrictApps_Tip1 TEXT END PART PART !!RestrictApps_Tip2 TEXT END PART PART !!RestrictApps_Tip3 TEXT END PART PART !!RestrictApps_Tip4 TEXT END PART END POLICY END CATEGORY END CATEGORY ; System [strings] Network="Network" Update="System policies update" RemoteUpdate="Remote update" UpdateMode="Update mode" UM_Automatic="Automatic (use default path)" UM_Manual="Manual (use specific path)" UM_Manual_Path="Path for manual update" DisplayErrors="Display error messages" LoadBalance="Load balancing" System="System" DisableFileSharing="Disable file sharing" DisablePrintSharing="Disable print sharing" ControlPanel="Control Panel" CPL_Display="Display" CPL_Display_Restrict="Restrict display" CPL_Display_Disable="Deny access to display icon" CPL_Display_HideBkgnd="Hide Background tab" CPL_Display_HideScrsav="Hide Screen Saver tab" CPL_Display_HideAppearance="Hide Appearance tab" CPL_Display_HideSettings="Hide Settings tab" Desktop="Desktop" Wallpaper="Wallpaper" WallpaperName="Wallpaper Name" TileWallpaper="Tile Wallpaper" Wallpaper_Tip1="Specifiy location and name (e.g. c:\winnt\winnt256.bmp)" Wallpaper_Tip2=" " ColorScheme="Color scheme" SchemeName="Scheme name" Lavender="Lavender 256" Celery="Celery 256" Rose="Rose 256" Evergreen="Evergreen 256" Blues="Blues 256" WindowsDefault="Windows Default" BlueAndBlack="Blue and Black" Teal="Teal" TheReds="The Reds" Wheat="Wheat" Wheat256="Wheat 256" Tan256="Tan 256" Shell="Shell" RemoveRun="Remove Run command from Start menu" RemoveFolders="Remove folders from Settings on Start menu" RemoveTaskbar="Remove Taskbar from Settings on Start menu" RemoveFind="Remove Find command from Start menu" HideDrives="Hide drives in My Computer" HideNetHood="Hide Network Neighborhood" NoEntireNetwork="No Entire Network in Network Neighborhood" HideDesktop="Hide all items on desktop" DisableClose="Disable Shut Down command" NoSaveSettings="Don't save settings at exit" SNMP="SNMP" Communities="Communities" CommunitiesListbox="Communities" PermittedManagers="Permitted managers" PermittedManagersListbox="Permitted managers" Traps_Public="Traps for Public community" Traps_PublicListbox="Trap configuration" Restrictions="Restrictions" DisableRegedit="Disable Registry editing tools" Run="Run" RunServices="Run services" RunListbox="Items to run at startup" RunServicesListbox="Services to run at startup" NoWorkgroupContents="No workgroup contents in Network Neighborhood" RestrictApps="Run only allowed Windows applications" RestrictAppsList="List of allowed applications" RestrictApps_Tip1=" " RestrictApps_Tip2="To create a list of allowed applications, click Show," RestrictApps_Tip3="then Add, and enter the application executable name" RestrictApps_Tip4="(e.g., Winword.exe, Poledit.exe, Powerpnt.exe)." DomainLogonConfirmation="Display domain logon confirmation" NoDomainPwdCaching="Disable caching of domain password" Contents of WINNT.ADM The policies in WINNT.ADM are specific to Windows NT 4.0. Even though many of the actual Registry settings under the CLASS MACHINE section are also usable under NT 3.5x, NT 3.5x does not look for or use policies. You can, however, use many of the Registry settings directly and modify your 3.5x environment. Most of the entries in WINNT.ADM (shown in Listing 29.2) are associated with system functions because most of the interface/user functions are included with COMMON.ADM. Using the system functions can significantly increase security by limiting access to sensitive areas of Windows NT. Listing 29.2. WINNT.ADM. CLASS MACHINE CATEGORY !!Network CATEGORY !!Sharing KEYNAME System\CurrentControlSet\Services\LanManServer\Parameters POLICY !!WorkstationShareAutoCreate VALUENAME "AutoShareWks" VALUEOFF NUMERIC 0 PART !!ShareWks_Tip1 TEXT END PART PART !!ShareWks_Tip2 TEXT END PART END POLICY POLICY !!ServerShareAutoCreate VALUENAME "AutoShareServer" VALUEOFF NUMERIC 0 PART !!ShareServer_Tip1 TEXT END PART PART !!ShareServer_Tip2 TEXT END PART END POLICY END CATEGORY ; Sharing END CATEGORY ; Network CATEGORY !!Printers KEYNAME System\CurrentControlSet\Control\Print POLICY !!PrintManager_Browser_Restrict VALUENAME DisableServerThread PART !!Disable_Server_Tip1 TEXT END PART PART !!Disable_Server_Tip2 TEXT END PART END POLICY POLICY !!Scheduler_Thread_Priority PART !!Scheduler_Priority DROPDOWNLIST VALUENAME SchedulerThreadPriority ITEMLIST NAME "Above Normal" VALUE NUMERIC 1 NAME "Normal" VALUE NUMERIC 0 NAME "Below Normal" VALUE NUMERIC -1 END ITEMLIST END PART END POLICY POLICY !!Beep_Enabled VALUENAME BeepEnabled VALUEOFF NUMERIC 0 PART !!Beep_Tip1 TEXT END PART PART !!Beep_Tip2 TEXT END PART END POLICY END CATEGORY CATEGORY !!RemoteAccess KEYNAME System\CurrentControlSet\Services\RemoteAccess\Parameters POLICY !!MaximumRetries PART !!RAS_Length NUMERIC REQUIRED MIN 1 MAX 10 DEFAULT 2 VALUENAME AuthenticateRetries END PART END POLICY POLICY !!MaximumTime PART !!RAS_Time NUMERIC REQUIRED MIN 20 MAX 600 DEFAULT 120 VALUENAME AuthenticateTime END PART END POLICY POLICY !!CallBackTime PART !!INT_Time NUMERIC REQUIRED MIN 2 MAX 12 DEFAULT 2 VALUENAME CallbackTime END PART END POLICY POLICY !!Auto_Disconnect PART !!Autodisconnect_Time NUMERIC REQUIRED MIN 0 DEFAULT 20 VALUENAME AutoDisconnect END PART END POLICY END CATEGORY CATEGORY !!Shell CATEGORY !!CustomSharedFolders KEYNAME "Software\Microsoft\Windows\CurrentVersion\ Explorer\User Shell Folders" POLICY !!CustomFolders_SharedPrograms PART !!CustomFolders_SharedProgramsPath EDITTEXT REQUIRED EXPANDABLETEXT DEFAULT !!CustomFolders_SharedProgramsDefault VALUENAME "Common Programs" END PART END POLICY POLICY !!CustomFolders_SharedDesktop PART !!CustomFolders_SharedDesktopPath EDITTEXT REQUIRED EXPANDABLETEXT DEFAULT !!CustomFolders_SharedDesktopDefault VALUENAME "Common Desktop" END PART END POLICY POLICY !!CustomFolders_SharedStartMenu PART !!CustomFolders_SharedStartMenuPath EDITTEXT REQUIRED EXPANDABLETEXT DEFAULT !!CustomFolders_SharedStartMenuDefault VALUENAME "Common Start Menu" END PART END POLICY POLICY !!CustomFolders_SharedStartup PART !!CustomFolders_SharedStartupPath EDITTEXT REQUIRED EXPANDABLETEXT DEFAULT !!CustomFolders_SharedStartupDefault VALUENAME "Common Startup" END PART END POLICY END CATEGORY END CATEGORY ; Shell CATEGORY !!System CATEGORY !!Login_Policies POLICY !!LogonBanner KEYNAME "Software\Microsoft\Windows NT\CurrentVersion\Winlogon" PART !!LogonBanner_Caption EDITTEXT VALUENAME "LegalNoticeCaption" MAXLEN 255 DEFAULT !!LogonBanner_DefCaption END PART PART !!LogonBanner_Text EDITTEXT VALUENAME "LegalNoticeText" MAXLEN 255 DEFAULT !!LogonBanner_DefText END PART END POLICY POLICY !!Shutdown_Restrict KEYNAME "Software\Microsoft\Windows NT\CurrentVersion\Winlogon" VALUENAME ShutdownWithoutLogon VALUEON "1" VALUEOFF "0" PART !!Shutd_Tip1 TEXT END PART PART !!Shutd_Tip2 TEXT END PART PART !!Shutd_Tip3 TEXT END PART END POLICY POLICY !!LastUserName_Restrict KEYNAME "Software\Microsoft\Windows NT\CurrentVersion\Winlogon" VALUENAME DontDisplayLastUserName VALUEON "1" VALUEOFF "0" PART !!Dont_Display_Tip1 TEXT END PART PART !!Dont_Display_Tip2 TEXT END PART PART !!Dont_Display_Tip3 TEXT END PART END POLICY POLICY !!Run_Logon_Script_Sync KEYNAME "Software\Microsoft\Windows NT\CurrentVersion\Winlogon" VALUENAME RunLogonScriptSync PART !!Script_Tip1 TEXT END PART PART !!Script_Tip2 TEXT END PART PART !!Script_Tip4 TEXT END PART END POLICY END CATEGORY ; Login Policies CATEGORY !!FileSystem KEYNAME System\CurrentControlSet\Control\FileSystem POLICY !!Disable8dot3Names VALUENAME "NtfsDisable8dot3NameCreation" END POLICY POLICY !!AllowExtCharsIn8dot3 VALUENAME "NtfsAllowExtendedCharacterIn8dot3Name" PART !!ExtChars_Tip1 TEXT END PART PART !!ExtChars_Tip2 TEXT END PART END POLICY POLICY !!DisableLastUpdate VALUENAME "NtfsDisableLastAccessUpdate" PART !!LastAccess_Tip1 TEXT END PART PART !!LastAccess_Tip2 TEXT END PART END POLICY END CATEGORY ; File system END CATEGORY ; System CATEGORY !!UserProfiles KEYNAME "Software\Microsoft\Windows NT\CurrentVersion\winlogon" POLICY !!DeleteRoamingCachedProfiles VALUENAME "DeleteRoamingCache" PART !!DeleteCache_Tip1 TEXT END PART PART !!DeleteCache_Tip2 TEXT END PART END POLICY POLICY !!EnableSlowLinkDetect VALUENAME "SlowLinkDetectEnabled" END POLICY POLICY !!SlowLinkTimeOut PART !!SlowLinkWaitInterval NUMERIC REQUIRED MIN 1 MAX 20000 DEFAULT 2000 VALUENAME SlowLinkTimeOut END PART END POLICY POLICY !!ProfileDlgTimeOut PART !!ProfileDlgWaitInterval NUMERIC REQUIRED MIN 0 MAX 600 DEFAULT 30 VALUENAME ProfileDlgTimeOut END PART END POLICY END CATEGORY CLASS USER CATEGORY !!Shell CATEGORY !!CustomFolders KEYNAME "Software\Microsoft\Windows\CurrentVersion\ Explorer\User Shell Folders" POLICY !!CustomFolders_Programs PART !!CustomFolders_ProgramsPath EDITTEXT REQUIRED EXPANDABLETEXT DEFAULT !!CustomFolders_ProgramsDefault VALUENAME "Programs" END PART END POLICY POLICY !!CustomFolders_Desktop PART !!CustomFolders_DesktopPath EDITTEXT REQUIRED EXPANDABLETEXT DEFAULT !!CustomFolders_DesktopDefault VALUENAME "Desktop" END PART END POLICY POLICY !!HideStartMenuSubfolders KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies\Explorer VALUENAME NoStartMenuSubFolders PART !!HideStartMenuSubfolders_Tip1 TEXT END PART PART !!HideStartMenuSubfolders_Tip2 TEXT END PART END POLICY POLICY !!CustomFolders_Startup PART !!CustomFolders_StartupPath EDITTEXT REQUIRED EXPANDABLETEXT DEFAULT !!CustomFolders_StartupDefault VALUENAME "Startup" END PART END POLICY POLICY !!CustomFolders_NetHood PART !!CustomFolders_NetHoodPath EDITTEXT REQUIRED EXPANDABLETEXT DEFAULT !!CustomFolders_NetHoodDefault VALUENAME "NetHood" END PART END POLICY POLICY !!CustomFolders_StartMenu PART !!CustomFolders_StartMenuPath EDITTEXT REQUIRED EXPANDABLETEXT DEFAULT !!CustomFolders_StartMenuDefault VALUENAME "Start Menu" END PART END POLICY END CATEGORY CATEGORY !!Restrictions KEYNAME Software\Microsoft\Windows\CurrentVersion\ Policies\Explorer POLICY !!ApprovedShellExt VALUENAME "EnforceShellExtensionSecurity" END POLICY POLICY !!NoCommonGroups VALUENAME "NoCommonGroups" END POLICY END CATEGORY END CATEGORY ; Shell CATEGORY !!System POLICY !!Parse_Autoexec KEYNAME "Software\Microsoft\Windows NT\CurrentVersion\Winlogon" VALUENAME ParseAutoexec VALUEON "1" VALUEOFF "0" PART !!Parse_Tip1 TEXT END PART PART !!Parse_Tip2 TEXT END PART END POLICY POLICY !!Run_Logon_Script_Sync KEYNAME "Software\Microsoft\Windows NT\CurrentVersion\Winlogon" VALUENAME RunLogonScriptSync VALUEOFF NUMERIC 0 PART !!Script_Tip1 TEXT END PART PART !!Script_Tip2 TEXT END PART PART !!Script_Tip3 TEXT END PART END POLICY END CATEGORY [strings] Network="Windows NT Network" Sharing="Sharing" WorkstationShareAutoCreate="Create hidden drive shares (workstation)" ServerShareAutoCreate="Create hidden drive shares (server)" ShareWks_Tip1=Automatically create <drive letter>$ and Admin$ shares ShareWks_Tip2=when Windows NT Workstation starts. ShareServer_Tip1=Automatically create <drive letter>$ and Admin$ shares ShareServer_Tip2=when Windows NT Server starts. System="Windows NT System" Login_Policies="Logon" LogonBanner="Logon banner" LogonBanner_Caption="Caption" LogonBanner_Text="Text" LogonBanner_DefCaption="Important Notice:" LogonBanner_DefText="Do not attempt to log on unless you are an authorized user." Shutdown_Restrict="Enable shutdown from Authentication dialog box" Shutd_Tip1="When this box is checked, you can click Shut Down" Shutd_Tip2="in the Authentication dialog box to select options." Shutd_Tip3="Default: NT Server = Off, NT Workstation = On" LastUserName_Restrict="Do not display last logged on user name" Dont_Display_Tip1="When this box is checked, Windows NT does not" Dont_Display_Tip2="automatically display the user name of the last person" Dont_Display_Tip3="to log on in the Authentication dialog box." Printers="Windows NT Printers" PrintManager_Browser_Restrict="Disable browse thread on this computer" Disable_Server_Tip1="When this box is checked, the print spooler does not" Disable_Server_Tip2="send shared printer information to other print servers." Scheduler_Thread_Priority="Scheduler priority" Scheduler_Priority="Priority" Thread_Priority_Above_Normal="Scheduler priority above normal" Thread_Priority_Below_Normal="Scheduler priority below normal" Thread_Priority_Normal="Scheduler priority normal" Beep_Enabled="Beep for error enabled" Beep_Tip1="A check in this box enables beeping (every 10 seconds) when a remote" Beep_Tip2="job error occurs on a print server." RemoteAccess="Windows NT Remote Access" MaximumRetries="Max number of unsuccessful authentication retries" RAS_Length="Number of retries" MaximumTime="Max time limit for authentication" RAS_Time="Length in seconds" CallBackTime="Wait interval for callback" INT_Time="Length in seconds" Auto_Disconnect="Auto Disconnect" Autodisconnect_Time="Disconnect after (minutes)" UserProfiles="Windows NT User Profiles" DeleteRoamingCachedProfiles="Delete cached copies of roaming profiles" DeleteCache_Tip1="When users with roaming profiles log off," DeleteCache_Tip2="delete the locally cached profile (to save disk space)." EnableSlowLinkDetect="Automatically detect slow network connections" SlowLinkTimeOut="Slow network connection timeout" SlowLinkWaitInterval="Time (milliseconds)" ProfileDlgTimeOut="Timeout for dialog boxes" ProfileDlgWaitInterval="Time (seconds)" Parse_Autoexec="Parse Autoexec.bat" Parse_Tip1="When this box is checked, environment variables declared" Parse_Tip2="in autoexec.bat are included in the users environment." Shell="Windows NT Shell" CustomFolders="Custom folders" CustomFolders_Programs="Custom Programs folder" CustomFolders_ProgramsPath="Path to location of Programs items" CustomFolders_ProgramsDefault="%USERPROFILE%\Start Menu\Programs" CustomFolders_Desktop="Custom desktop icons" CustomFolders_DesktopPath="Path to location of desktop icons" CustomFolders_DesktopDefault="%USERPROFILE%\Desktop" HideStartMenuSubfolders="Hide Start menu subfolders" HideStartMenuSubfolders_Tip1="Check this if you use a custom Programs folder" HideStartMenuSubfolders_Tip2="or custom desktop icons." CustomFolders_Startup="Custom Startup folder" CustomFolders_StartupPath="Path to location of Startup items" CustomFolders_StartupDefault="%USERPROFILE%\Start Menu\Programs\Startup" CustomFolders_NetHood="Custom Network Neighborhood" CustomFolders_NetHoodPath="Path to location of Network Neighborhood items" CustomFolders_NetHoodDefault="%USERPROFILE%\NetHood" CustomFolders_StartMenu="Custom Start menu" CustomFolders_StartMenuPath="Path to location of Start menu items" CustomFolders_StartMenuDefault="%USERPROFILE%\Start Menu" CustomSharedFolders="Custom shared folders" CustomFolders_SharedPrograms="Custom shared Programs folder" CustomFolders_SharedProgramsPath="Path to location of shared Programs items" CustomFolders_SharedProgramsDefault="%SystemRoot%\Profiles\All Users\Start Menu\Programs" CustomFolders_SharedDesktop="Custom shared desktop icons" CustomFolders_SharedDesktopPath="Path to location of shared desktop icons" CustomFolders_SharedDesktopDefault="%SystemRoot%\Profiles\All Users\Desktop" CustomFolders_SharedStartMenu="Custom shared Start menu" CustomFolders_SharedStartMenuPath="Path to location of shared Start menu items" CustomFolders_SharedStartMenuDefault="%SystemRoot%\Profiles\All Users\Start Menu" CustomFolders_SharedStartup="Custom shared Startup folder" CustomFolders_SharedStartupPath="Path to location of shared Startup items" CustomFolders_SharedStartupDefault="%SystemRoot%\Profiles\All Users\Start Menu\Programs\Startup" Restrictions="Restrictions" ApprovedShellExt="Only use approved shell extensions" NoCommonGroups="Remove common program groups from Start menu" FileSystem="File system" Disable8dot3Names="Do not create 8.3 file names for long file names" AllowExtCharsIn8dot3="Allow extended characters in 8.3 file names" ExtChars_Tip1="Short file names with extended characters may not be viewable" ExtChars_Tip2="on computers that do not have same character code page." DisableLastUpdate="Do not update last access time" LastAccess_Tip1="For files that are only being read, do not update the last" LastAccess_Tip2="access time. This will increase the file system's performance." Run_Logon_Script_Sync="Run logon scripts synchronously." Script_Tip1="Wait for the logon scripts to complete before starting" Script_Tip2="the users's shell. If this value is also set in the" Script_Tip3="Computer section, that value takes precedence." Script_Tip4="User section, this value takes precedence." Contents of ADMIN.ADM The policies in ADMIN.ADM are for use in Windows 95. Most of the entries in ADMIN.ADM are associated with user functions because that is where most of the benefit comes in creating policies for Windows 95. Listing 29.3 shows the entire contents of ADMIN.ADM. Listing 29.3. Contents of ADMIN.ADM. CLASS MACHINE CATEGORY !!Network KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies\Network CATEGORY !!AccessControl POLICY !!AccessControl_User KEYNAME System\CurrentControlSet\Services\VxD\FILESEC VALUENAME Start VALUEON NUMERIC 0 VALUEOFF DELETE ACTIONLISTON KEYNAME System\CurrentControlSet\Services\VxD\FILESEC VALUENAME StaticVxD VALUE filesec.vxd END ACTIONLISTON ACTIONLISTOFF KEYNAME Security\Provider VALUENAME Platform_Type VALUE NUMERIC 0 KEYNAME System\CurrentControlSet\Services\VxD\FILESEC VALUENAME StaticVxD VALUE DELETE KEYNAME System\CurrentControlSet\Services\VxD\NWSP VALUENAME Start VALUE DELETE VALUENAME StaticVxD VALUE DELETE KEYNAME System\CurrentControlSet\Services\VxD\MSSP VALUENAME Start VALUE DELETE VALUENAME StaticVxD VALUE DELETE END ACTIONLISTOFF PART !!AuthenticatorName EDITTEXT KEYNAME Security\Provider VALUENAME Container END PART PART !!AuthenticatorType DROPDOWNLIST KEYNAME Security\Provider VALUENAME Platform_Type REQUIRED ITEMLIST NAME !!AT_NetWare VALUE NUMERIC 3 ACTIONLIST KEYNAME System\CurrentControlSet\Services\VxD\NWSP VALUENAME StaticVxD VALUE nwsp.vxd VALUENAME Start VALUE NUMERIC 0 KEYNAME Security\Provider VALUENAME Address_Book VALUE nwab32.dll END ACTIONLIST NAME !!AT_NTAS VALUE NUMERIC 2 ACTIONLIST KEYNAME System\CurrentControlSet\Services\VxD\MSSP VALUENAME StaticVxD VALUE mssp.vxd VALUENAME Start VALUE NUMERIC 0 KEYNAME Security\Provider VALUENAME Address_Book VALUE msab32.dll END ACTIONLIST NAME !!AT_NT VALUE NUMERIC 1 ACTIONLIST KEYNAME System\CurrentControlSet\Services\VxD\MSSP VALUENAME StaticVxD VALUE mssp.vxd VALUENAME Start VALUE NUMERIC 0 KEYNAME Security\Provider VALUENAME Address_Book VALUE msab32.dll END ACTIONLIST END ITEMLIST END PART END POLICY END CATEGORY ; User-Level Security CATEGORY !!Logon POLICY !!LogonBanner KEYNAME Software\Microsoft\Windows\CurrentVersion\Winlogon PART !!LogonBanner_Caption EDITTEXT VALUENAME "LegalNoticeCaption" MAXLEN 255 DEFAULT !!LogonBanner_DefCaption END PART PART !!LogonBanner_Text EDITTEXT VALUENAME "LegalNoticeText" MAXLEN 255 DEFAULT !!LogonBanner_DefText END PART END POLICY POLICY !!ValidatedLogon KEYNAME Network\Logon VALUENAME "MustBeValidated" END POLICY END CATEGORY CATEGORY !!NWClient KEYNAME System\CurrentControlSet\Services\VxD\NWREDIR POLICY !!PrefServer KEYNAME System\CurrentControlSet\Services\NWNP32\NetworkProvider PART !!PrefServerName EDITTEXT REQUIRED VALUENAME "AuthenticatingAgent" MAXLEN 48 END PART END POLICY POLICY !!SupportLFN PART !!SupportLFNsOn DROPDOWNLIST REQUIRED VALUENAME "SupportLFN" ITEMLIST NAME !!LFN_No311 VALUE NUMERIC 1 NAME !!LFN_All VALUE NUMERIC 2 END ITEMLIST END PART END POLICY POLICY !!SearchMode PART !!SearchMode1 NUMERIC VALUENAME SearchMode MIN 0 MAX 7 DEFAULT 0 END PART END POLICY POLICY !!DisableAutoNWLogin KEYNAME System\CurrentControlSet\Services\NWNP32\NetworkProvider VALUENAME DisableDefaultPasswords END POLICY END CATEGORY ; Microsoft Netware-Compatible Network CATEGORY !!MSClient POLICY !!LogonDomain KEYNAME Network\Logon VALUENAME "LMLogon" PART !!DomainName EDITTEXT REQUIRED MAXLEN 15 KEYNAME System\CurrentControlSet\Services\MSNP32\NetworkProvider VALUENAME AuthenticatingAgent END PART PART !!DomainLogonConfirmation CHECKBOX KEYNAME Network\Logon VALUENAME DomainLogonMessage END PART PART !!NoDomainPwdCaching CHECKBOX KEYNAME Network\Logon VALUENAME NoDomainPwdCaching END PART END POLICY POLICY !!Workgroup KEYNAME System\CurrentControlSet\Services\VxD\VNETSUP PART !!WorkgroupName EDITTEXT REQUIRED VALUENAME "Workgroup" MAXLEN 15 END PART END POLICY POLICY !!AlternateWorkgroup KEYNAME System\CurrentControlSet\Services\VxD\VREDIR PART !!WorkgroupName EDITTEXT REQUIRED VALUENAME "Workgroup" MAXLEN 15 END PART END POLICY END CATEGORY ; Microsoft Network CATEGORY !!NWServer POLICY !!DisableSAP KEYNAME System\CurrentControlSet\Services\NcpServer\Parameters VALUENAME Use_Sap VALUEON "0" VALUEOFF "1" ACTIONLISTON KEYNAME System\CurrentControlSet\Services\NcpServer\ Parameters\Ndi\Params\Use_Sap VALUENAME "" VALUE "0" END ACTIONLISTON ACTIONLISTOFF KEYNAME System\CurrentControlSet\Services\NcpServer\Parameters\Ndi\Params\Use_Sap VALUENAME "" VALUE "1" END ACTIONLISTOFF END POLICY END CATEGORY CATEGORY !!Passwords POLICY !!HideSharePasswords VALUENAME "HideSharePwds" END POLICY POLICY !!DisablePasswordCaching VALUENAME "DisablePwdCaching" END POLICY POLICY !!RequireAlphaNum VALUENAME "AlphanumPwds" END POLICY POLICY !!MinimumPwdLen PART !!MPL_Length NUMERIC REQUIRED MIN 1 MAX 8 DEFAULT 3 VALUENAME MinPwdLen END PART END POLICY END CATEGORY ; Passwords CATEGORY !!RemoteAccess POLICY !!RemoteAccess_Disable VALUENAME "NoDialIn" END POLICY END CATEGORY ; Remote Access CATEGORY !!Sharing POLICY !!DisableFileSharing VALUENAME "NoFileSharing" END POLICY POLICY !!DisablePrintSharing VALUENAME "NoPrintSharing" END POLICY END CATEGORY CATEGORY !!SNMP POLICY !!Communities KEYNAME System\CurrentControlSet\Services\SNMP\ Parameters\ValidCommunities PART !!CommunitiesListbox LISTBOX VALUEPREFIX "" END PART END POLICY POLICY !!PermittedManagers KEYNAME System\CurrentControlSet\Services\SNMP\Parameters\ PermittedManagers PART !!PermittedManagersListbox LISTBOX VALUEPREFIX "" END PART END POLICY POLICY !!Traps_Public KEYNAME System\CurrentControlSet\Services\SNMP\Parameters\ TrapConfiguration\Public PART !!Traps_PublicListbox LISTBOX VALUEPREFIX "" END PART END POLICY POLICY !!InternetMIB KEYNAME System\CurrentControlSet\Services\SNMP\Parameters\RFC1156Agent PART !!ContactName EDITTEXT REQUIRED VALUENAME sysContact END PART PART !!Location EDITTEXT REQUIRED VALUENAME sysLocation END PART END POLICY END CATEGORY CATEGORY !!Update POLICY !!RemoteUpdate KEYNAME System\CurrentControlSet\Control\Update ACTIONLISTOFF VALUENAME "UpdateMode" VALUE NUMERIC 0 END ACTIONLISTOFF PART !!UpdateMode DROPDOWNLIST REQUIRED VALUENAME "UpdateMode" ITEMLIST NAME !!UM_Automatic VALUE NUMERIC 1 NAME !!UM_Manual VALUE NUMERIC 2 END ITEMLIST END PART PART !!UM_Manual_Path EDITTEXT VALUENAME "NetworkPath" END PART PART !!DisplayErrors CHECKBOX VALUENAME "Verbose" END PART PART !!LoadBalance CHECKBOX VALUENAME "LoadBalance" END PART END POLICY END CATEGORY ; Update END CATEGORY ; Network CATEGORY !!System KEYNAME Software\Microsoft\Windows\CurrentVersion\Setup POLICY !!EnableUserProfiles KEYNAME Network\Logon VALUENAME UserProfiles END POLICY POLICY !!NetworkSetupPath PART !!NetworkSetupPath_Path EDITTEXT REQUIRED VALUENAME "SourcePath" END PART END POLICY POLICY !!NetworkTourPath PART !!NetworkTourPath_Path EDITTEXT REQUIRED VALUENAME "TourPath" END PART PART !!NetworkTourPath_ TIP TEXT END PART END POLICY POLICY !!Run KEYNAME Software\Microsoft\Windows\CurrentVersion\Run PART !!RunListbox LISTBOX EXPLICITVALUE END PART END POLICY POLICY !!RunOnce KEYNAME Software\Microsoft\Windows\CurrentVersion\RunOnce PART !!RunOnceListbox LISTBOX EXPLICITVALUE END PART END POLICY POLICY !!RunServices KEYNAME Software\Microsoft\Windows\CurrentVersion\RunServices PART !!RunServicesListbox LISTBOX EXPLICITVALUE END PART END POLICY END CATEGORY CLASS USER CATEGORY !!ControlPanel CATEGORY !!CPL_Display POLICY !!CPL_Display_Restrict KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies\System PART !!CPL_Display_Disable CHECKBOX VALUENAME NoDispCPL END PART PART !!CPL_Display_HideBkgnd CHECKBOX VALUENAME NoDispBackgroundPage END PART PART !!CPL_Display_HideScrsav CHECKBOX VALUENAME NoDispScrSavPage END PART PART !!CPL_Display_HideAppearance CHECKBOX VALUENAME NoDispAppearancePage END PART PART !!CPL_Display_HideSettings CHECKBOX VALUENAME NoDispSettingsPage END PART END POLICY END CATEGORY ; Display CATEGORY !!CPL_Network POLICY !!CPL_Network_Restrict KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies\Network PART !!CPL_Network_Disable CHECKBOX VALUENAME NoNetSetup END PART PART !!CPL_Network_HideID CHECKBOX VALUENAME NoNetSetupIDPage END PART PART !!CPL_Network_HideAccessCtrl CHECKBOX VALUENAME NoNetSetupSecurityPage END PART END POLICY END CATEGORY ; Network CATEGORY !!CPL_Security POLICY !!CPL_Security_Restrict KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies\System PART !!CPL_Security_Disable CHECKBOX VALUENAME NoSecCPL END PART PART !!CPL_Security_HideSetPwds CHECKBOX VALUENAME NoPwdPage END PART PART !!CPL_Security_HideRemoteAdmin CHECKBOX VALUENAME NoAdminPage END PART PART !!CPL_Security_HideProfiles CHECKBOX VALUENAME NoProfilePage END PART END POLICY END CATEGORY ; Security CATEGORY !!CPL_Printers POLICY !!CPL_Printers_Restrict KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies\Explorer PART !!CPL_Printers_HidePages CHECKBOX VALUENAME NoPrinterTabs END PART PART !!CPL_Printers_DisableRemoval CHECKBOX VALUENAME NoDeletePrinter END PART PART !!CPL_Printers_DisableAdd CHECKBOX VALUENAME NoAddPrinter END PART END POLICY END CATEGORY ; Printers CATEGORY !!CPL_System POLICY !!CPL_System_Restrict KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies\System PART !!CPL_System_HideDevMgr CHECKBOX VALUENAME NoDevMgrPage END PART PART !!CPL_System_HideConfig CHECKBOX VALUENAME NoConfigPage END PART PART !!CPL_System_NoFileSys CHECKBOX VALUENAME NoFileSysPage END PART PART !!CPL_System_NoVirtMem CHECKBOX VALUENAME NoVirtMemPage END PART END POLICY END CATEGORY ; System END CATEGORY ; Control Panel CATEGORY !!Desktop KEYNAME "Control Panel\Desktop" POLICY !!Wallpaper PART !!WallpaperName COMBOBOX REQUIRED SUGGESTIONS !!Wallpaper1 !!Wallpaper2 !!Wallpaper3 !!Wallpaper4 !!Wallpaper5 !!Wallpaper6 !!Wallpaper7 !!Wallpaper8 !!Wallpaper9 !!Wallpaper10 END SUGGESTIONS VALUENAME "Wallpaper" END PART PART !!TileWallpaper CHECKBOX DEFCHECKED VALUENAME "TileWallpaper" VALUEON "1" VALUEOFF "0" END PART END POLICY POLICY !!ColorScheme PART !!SchemeName DROPDOWNLIST KEYNAME "Control Panel\Appearance" VALUENAME Current REQUIRED ITEMLIST NAME !!Lavender VALUE !!Lavender ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "174 168 217" VALUENAME ActiveTitle VALUE "128 128 128" VALUENAME AppWorkspace VALUE "90 78 177" VALUENAME Background VALUE "128 128 192" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "174 168 217" VALUENAME ButtonHilight VALUE "216 213 236" VALUENAME ButtonLight VALUE "174 168 217" VALUENAME ButtonShadow VALUE "90 78 177" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "90 78 177" VALUENAME Hilight VALUE "128 128 128" VALUENAME HilightText VALUE "255 255 255" VALUENAME InactiveBorder VALUE "174 168 217" VALUENAME InactiveTitle VALUE "90 78 177" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "174 168 217" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "174 168 217" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "174 168 217" VALUENAME TitleText VALUE "255 255 255" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!Tan256 VALUE !!Tan256 ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "202 184 149" VALUENAME ActiveTitle VALUE "0 0 0" VALUENAME AppWorkspace VALUE "156 129 78" VALUENAME Background VALUE "128 64 64" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "202 184 149" VALUENAME ButtonHilight VALUE "228 220 203" VALUENAME ButtonLight VALUE "202 184 149" VALUENAME ButtonShadow VALUE "156 129 78" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "156 129 78" VALUENAME Hilight VALUE "0 0 0" VALUENAME HilightText VALUE "255 255 255" VALUENAME InactiveBorder VALUE "202 184 149" VALUENAME InactiveTitle VALUE "156 129 78" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "202 184 149" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "202 184 149" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "202 184 149" VALUENAME TitleText VALUE "255 255 255" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!Wheat256 VALUE !!Wheat256 ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "215 213 170" VALUENAME ActiveTitle VALUE "0 0 0" VALUENAME AppWorkspace VALUE "173 169 82" VALUENAME Background VALUE "0 64 64" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "215 213 170" VALUENAME ButtonHilight VALUE "235 234 214" VALUENAME ButtonLight VALUE "215 213 170" VALUENAME ButtonShadow VALUE "173 169 82" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "173 169 82" VALUENAME Hilight VALUE "0 0 0" VALUENAME HilightText VALUE "255 255 255" VALUENAME InactiveBorder VALUE "215 213 170" VALUENAME InactiveTitle VALUE "173 169 82" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "215 213 170" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "215 213 170" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "215 213 170" VALUENAME TitleText VALUE "255 255 255" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!Celery VALUE !!Celery ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "168 215 170" VALUENAME ActiveTitle VALUE "0 0 0" VALUENAME AppWorkspace VALUE "80 175 85" VALUENAME Background VALUE "32 18 46" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "168 215 170" VALUENAME ButtonHilight VALUE "211 235 213" VALUENAME ButtonLight VALUE "168 215 170" VALUENAME ButtonShadow VALUE "85 175 85" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "80 175 85" VALUENAME Hilight VALUE "0 0 0" VALUENAME HilightText VALUE "255 255 255" VALUENAME InactiveBorder VALUE "168 215 170" VALUENAME InactiveTitle VALUE "80 175 75" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "168 215 170" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "168 215 170" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "168 215 170" VALUENAME TitleText VALUE "255 255 255" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!Rose VALUE !!Rose ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "207 175 183" VALUENAME ActiveTitle VALUE "128 128 128" VALUENAME AppWorkspace VALUE "159 96 112" VALUENAME Background VALUE "128 64 64" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "207 175 183" VALUENAME ButtonHilight VALUE "231 216 220" VALUENAME ButtonLight VALUE "207 175 183" VALUENAME ButtonShadow VALUE "159 96 112" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "159 96 112" VALUENAME Hilight VALUE "128 128 128" VALUENAME HilightText VALUE "255 255 255" VALUENAME InactiveBorder VALUE "207 175 183" VALUENAME InactiveTitle VALUE "159 96 112" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "207 175 183" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "207 175 183" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "207 175 183" VALUENAME TitleText VALUE "255 255 255" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!Evergreen VALUE !!Evergreen ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "47 151 109" VALUENAME ActiveTitle VALUE "0 0 0" VALUENAME AppWorkspace VALUE "31 101 73" VALUENAME Background VALUE "48 63 48" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "47 151 109" VALUENAME ButtonHilight VALUE "137 218 186" VALUENAME ButtonLight VALUE "47 151 109" VALUENAME ButtonShadow VALUE "31 101 73" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "31 101 73" VALUENAME Hilight VALUE "0 0 0" VALUENAME HilightText VALUE "255 255 255" VALUENAME InactiveBorder VALUE "47 151 109" VALUENAME InactiveTitle VALUE "31 101 73" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "47 151 109" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "47 151 109" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "47 151 109" VALUENAME TitleText VALUE "255 255 255" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!Blues VALUE !!Blues ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "161 198 221" VALUENAME ActiveTitle VALUE "0 0 0" VALUENAME AppWorkspace VALUE "69 139 186" VALUENAME Background VALUE "0 0 64" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "164 198 221" VALUENAME ButtonHilight VALUE "210 227 238" VALUENAME ButtonLight VALUE "164 198 221" VALUENAME ButtonShadow VALUE "69 139 186" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "69 139 186" VALUENAME Hilight VALUE "0 0 0" VALUENAME HilightText VALUE "255 255 255" VALUENAME InactiveBorder VALUE "164 198 221" VALUENAME InactiveTitle VALUE "69 139 186" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "164 198 221" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "164 198 221" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "164 198 221" VALUENAME TitleText VALUE "255 255 255" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!Teal VALUE !!Teal ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "192 192 192" VALUENAME ActiveTitle VALUE "0 128 128" VALUENAME AppWorkspace VALUE "128 128 128" VALUENAME Background VALUE "0 64 64" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "192 192 192" VALUENAME ButtonHilight VALUE "255 255 255" VALUENAME ButtonLight VALUE "192 192 192" VALUENAME ButtonShadow VALUE "128 128 128" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "128 128 128" VALUENAME Hilight VALUE "0 128 128" VALUENAME HilightText VALUE "255 255 255" VALUENAME InactiveBorder VALUE "192 192 192" VALUENAME InactiveTitle VALUE "192 192 192" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "192 192 192" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "192 192 192" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "192 192 192" VALUENAME TitleText VALUE "0 0 0" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!TheReds VALUE !!TheReds ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "192 192 192" VALUENAME ActiveTitle VALUE "128 0 0" VALUENAME AppWorkspace VALUE "128 128 128" VALUENAME Background VALUE "64 0 0" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "192 192 192" VALUENAME ButtonHilight VALUE "255 255 255" VALUENAME ButtonLight VALUE "192 192 192" VALUENAME ButtonShadow VALUE "128 128 128" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "128 128 128" VALUENAME Hilight VALUE "128 0 0" VALUENAME HilightText VALUE "255 255 255" VALUENAME InactiveBorder VALUE "192 192 192" VALUENAME InactiveTitle VALUE "192 192 192" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "192 192 192" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "192 192 192" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "192 192 192" VALUENAME TitleText VALUE "255 255 255" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!WindowsDefault VALUE !!WindowsDefault ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "192 192 192" VALUENAME ActiveTitle VALUE "0 0 128" VALUENAME AppWorkspace VALUE "128 128 128" VALUENAME Background VALUE "0 128 128" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "192 192 192" VALUENAME ButtonHilight VALUE "255 255 255" VALUENAME ButtonLight VALUE "192 192 192" VALUENAME ButtonShadow VALUE "128 128 128" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "128 128 128" VALUENAME Hilight VALUE "0 0 128" VALUENAME HilightText VALUE "255 255 255" VALUENAME InactiveBorder VALUE "192 192 192" VALUENAME InactiveTitle VALUE "192 192 192" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "192 192 192" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "192 192 192" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "192 192 192" VALUENAME TitleText VALUE "255 255 255" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!BlueAndBlack VALUE !!BlueAndBlack ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "192 192 192" VALUENAME ActiveTitle VALUE "0 0 0" VALUENAME AppWorkspace VALUE "128 128 128" VALUENAME Background VALUE "0 0 128" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "192 192 192" VALUENAME ButtonHilight VALUE "255 255 255" VALUENAME ButtonLight VALUE "192 192 192" VALUENAME ButtonShadow VALUE "128 128 128" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "128 128 128" VALUENAME Hilight VALUE "255 255 0" VALUENAME HilightText VALUE "0 0 0" VALUENAME InactiveBorder VALUE "192 192 192" VALUENAME InactiveTitle VALUE "192 192 192" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "192 192 192" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "192 192 192" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "192 192 192" VALUENAME TitleText VALUE "255 255 255" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST NAME !!Wheat VALUE !!Wheat ACTIONLIST KEYNAME "Control Panel\Colors" VALUENAME ActiveBorder VALUE "192 192 192" VALUENAME ActiveTitle VALUE "128 128 0" VALUENAME AppWorkspace VALUE "128 128 128" VALUENAME Background VALUE "128 128 64" VALUENAME ButtonDkShadow VALUE "0 0 0" VALUENAME ButtonFace VALUE "192 192 192" VALUENAME ButtonHilight VALUE "255 255 255" VALUENAME ButtonLight VALUE "192 192 192" VALUENAME ButtonShadow VALUE "128 128 128" VALUENAME ButtonText VALUE "0 0 0" VALUENAME GrayText VALUE "128 128 128" VALUENAME Hilight VALUE "128 128 0" VALUENAME HilightText VALUE "0 0 0" VALUENAME InactiveBorder VALUE "192 192 192" VALUENAME InactiveTitle VALUE "192 192 192" VALUENAME InactiveTitleText VALUE "0 0 0" VALUENAME Menu VALUE "192 192 192" VALUENAME MenuText VALUE "0 0 0" VALUENAME InfoText VALUE "192 192 192" VALUENAME InfoWindow VALUE "0 0 0" VALUENAME Scrollbar VALUE "192 192 192" VALUENAME TitleText VALUE "0 0 0" VALUENAME Window VALUE "255 255 255" VALUENAME WindowFrame VALUE "0 0 0" VALUENAME WindowText VALUE "0 0 0" END ACTIONLIST END ITEMLIST END PART END POLICY END CATEGORY ; desktop CATEGORY !!Network KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies\Network CATEGORY !!Sharing POLICY !!DisableFileSharingCtrl VALUENAME NoFileSharingControl END POLICY POLICY !!DisablePrintSharingCtrl VALUENAME NoPrintSharingControl END POLICY END CATEGORY ; Sharing END CATEGORY ; Network CATEGORY !!Shell KEYNAME "Software\Microsoft\Windows\CurrentVersion\Explorer\User Shell Folders" CATEGORY !!CustomFolders POLICY !!CustomFolders_Programs PART !!CustomFolders_ProgramsPath EDITTEXT REQUIRED VALUENAME "Programs" END PART END POLICY POLICY !!CustomFolders_Desktop PART !!CustomFolders_DesktopPath EDITTEXT REQUIRED VALUENAME "Desktop" END PART END POLICY POLICY !!HideStartMenuSubfolders KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies\Explorer VALUENAME NoStartMenuSubFolders PART !!HideStartMenuSubfolders_Tip1 TEXT END PART PART !!HideStartMenuSubfolders_Tip2 TEXT END PART END POLICY POLICY !!CustomFolders_Startup PART !!CustomFolders_StartupPath EDITTEXT REQUIRED VALUENAME "Startup" END PART END POLICY PART !!CustomFolders_NetHoodPath EDITTEXT REQUIRED VALUENAME "NetHood" END PART END POLICY POLICY !!CustomFolders_StartMenu PART !!CustomFolders_StartMenuPath EDITTEXT REQUIRED VALUENAME "Start Menu" END PART END POLICY END CATEGORY CATEGORY !!Restrictions KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies\Explorer POLICY !!RemoveRun VALUENAME "NoRun" END POLICY POLICY !!RemoveFolders VALUENAME "NoSetFolders" END POLICY POLICY !!RemoveTaskbar VALUENAME "NoSetTaskbar" END POLICY POLICY !!RemoveFind VALUENAME "NoFind" END POLICY POLICY !!HideDrives VALUENAME "NoDrives" VALUEON NUMERIC 67108863 ; low 26 bits on (1 bit per drive) END POLICY POLICY !!HideNetHood VALUENAME "NoNetHood" END POLICY POLICY !!NoEntireNetwork KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies\ Network VALUENAME "NoEntireNetwork" END POLICY POLICY !!NoWorkgroupContents KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies\ Network VALUENAME "NoWorkgroupContents" END POLICY POLICY !!HideDesktop VALUENAME "NoDesktop" END POLICY POLICY !!DisableClose VALUENAME "NoClose" END POLICY POLICY !!NoSaveSettings VALUENAME "NoSaveSettings" END POLICY END CATEGORY END CATEGORY ; Shell CATEGORY !!System KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies\System CATEGORY !!Restrictions POLICY !!DisableRegedit VALUENAME DisableRegistryTools END POLICY POLICY !!RestrictApps KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies\Explorer VALUENAME RestrictRun PART !!RestrictAppsList LISTBOX KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies\ Explorer\RestrictRun VALUEPREFIX "" END PART END POLICY POLICY !!DisableMSDOS KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies\WinOldApp VALUENAME Disabled END POLICY POLICY !!DisableSingleMSDOS KEYNAME Software\Microsoft\Windows\CurrentVersion\Policies\WinOldApp VALUENAME NoRealMode END POLICY END CATEGORY END CATEGORY [strings] System="System" NetworkSetupPath="Network path for Windows Setup" NetworkSetupPath_Path="Path:" NetworkTourPath="Network path for Windows Tour" NetworkTourPath_Path="Path:" NetworkTourPath_Tip="Note: the path must end in TOUR.EXE" EnableUserProfiles="Enable User Profiles" Network="Network" Logon="Logon" LogonBanner="Logon Banner" LogonBanner_Caption="Caption:" LogonBanner_Text="Text:" LogonBanner_DefCaption="Important Notice:" LogonBanner_DefText="Do not attempt to log on unless you are an authorized user." ValidatedLogon="Require Validation by Network for Windows Access" Sharing="Sharing" DisableFileSharing="Disable file sharing" DisablePrintSharing="Disable print sharing" AccessControl="Access Control" AccessControl_User="User-level Access Control" AuthenticatorName="Authenticator Name:" AuthenticatorType="Authenticator Type:" AT_NetWare="NetWare 3.x or 4.x" AT_NT="Windows NT Server or Workstation" AT_NTAS="Windows NT Domain" Passwords="Passwords" HideSharePasswords="Hide share passwords with asterisks" DisablePasswordCaching="Disable password caching" RequireAlphaNum="Require alphanumeric Windows password" MinimumPwdLen="Minimum Windows password length" MPL_Length="Length:" RemoteAccess="Dial-Up Networking" RemoteAccess_Disable="Disable dial-in" Update="Update" RemoteUpdate="Remote Update" UpdateMode="Update Mode:" UM_Automatic="Automatic (use default path)" UM_Manual="Manual (use specific path)" UM_Manual_Path="Path for manual update:" DisplayErrors="Display error messages" LoadBalance="Load-balance" MSClient="Microsoft Client for Windows Networks" NWServer="File and printer sharing for NetWare Networks" LogonDomain="Log on to Windows NT" DomainName="Domain name:" Workgroup="Workgroup" AlternateWorkgroup="Alternate Workgroup" WorkgroupName="Workgroup name:" NWClient="Microsoft Client for NetWare Networks" PrefServer="Preferred server" PrefServerName="Server name:" SupportLFN="Support long file names" SupportLFNsOn="Support long file names on:" LFN_No311="NetWare 3.12 and above" LFN_All="All NetWare servers that support LFNs" SearchMode="Search Mode" SearchMode1="Search Mode:" DisableAutoNWLogin="Disable Automatic NetWare Login" DisableSAP="Disable SAP Advertising" ControlPanel="Control Panel" CPL_Display="Display" CPL_Display_Restrict="Restrict Display Control Panel" CPL_Display_Disable="Disable Display Control Panel" CPL_Display_HideBkgnd="Hide Background page" CPL_Display_HideScrsav="Hide Screen Saver page" CPL_Display_HideAppearance="Hide Appearance page" CPL_Display_HideSettings="Hide Settings page" CPL_Network="Network" CPL_Network_Restrict="Restrict Network Control Panel" CPL_Network_Disable="Disable Network Control Panel" CPL_Network_HideID="Hide Identification Page" CPL_Network_HideAccessCtrl="Hide Access Control Page" CPL_Printers="Printers" CPL_Printers_Restrict="Restrict Printer Settings" CPL_Printers_HidePages="Hide General and Details pages" CPL_Printers_DisableRemoval="Disable Deletion of Printers" CPL_Printers_DisableAdd="Disable Addition of Printers" CPL_System="System" CPL_System_Restrict="Restrict System Control Panel" CPL_System_HideDevMgr="Hide Device Manager page" CPL_System_HideConfig="Hide Hardware Profiles Page" CPL_System_NoFileSys="Hide File System button" CPL_System_NoVirtMem="Hide Virtual Memory button" CPL_Security="Passwords" CPL_Security_Restrict="Restrict Passwords Control Panel" CPL_Security_Disable="Disable Passwords Control Panel" CPL_Security_HideSetPwds="Hide Change Passwords page" CPL_Security_HideRemoteAdmin="Hide Remote Administration page" CPL_Security_HideProfiles="Hide User Profiles page" Desktop="Desktop" Wallpaper="Wallpaper" WallpaperName="Wallpaper name:" Wallpaper1="Black Thatch.bmp" Wallpaper2="Blue Rivets.bmp" Wallpaper3="Bubbles.bmp" Wallpaper4="Circles.bmp" Wallpaper5="Egypt.bmp" Wallpaper6="Houndstooth.bmp" Wallpaper7="Pinstripe.bmp" Wallpaper8="Straw Mat.bmp" Wallpaper9="Tiles.bmp" Wallpaper10="Triangles.bmp" TileWallpaper="Tile wallpaper" ColorScheme="Color scheme" SchemeName="Scheme name:" Lavender="Lavender 256" Celery="Celery 256" Rose="Rose 256" Evergreen="Evergreen 256" Blues="Blues 256" WindowsDefault="Windows Default" BlueAndBlack="Blue and Black" Teal="Teal" TheReds="The Reds" Wheat="Wheat" Wheat256="Wheat 256" Tan256="Tan 256" DisableFileSharingCtrl="Disable file sharing controls" DisablePrintSharingCtrl="Disable print sharing controls" Shell="Shell" CustomFolders="Custom Folders" CustomFolders_Programs="Custom Programs Folder" CustomFolders_ProgramsPath="Path to get Programs items from:" CustomFolders_Desktop="Custom Desktop Icons" CustomFolders_DesktopPath="Path to get Desktop icons from:" HideStartMenuSubfolders="Hide Start Menu subfolders" HideStartMenuSubfolders_Tip1="Check this if you use a custom Programs Folder or" HideStartMenuSubfolders_Tip2="custom Desktop icons." CustomFolders_Startup="Custom Startup Folder" CustomFolders_StartupPath="Path to get Startup items from:" CustomFolders_NetHood="Custom Network Neighborhood" CustomFolders_NetHoodPath="Path to get Network Neighborhood items from:" CustomFolders_StartMenu="Custom Start Menu" CustomFolders_StartMenuPath="Path to get Start Menu items from:" Restrictions="Restrictions" RemoveRun="Remove `Run' command" RemoveFolders="Remove folders from `Settings' on Start Menu" RemoveTaskbar="Remove Taskbar from `Settings' on Start Menu" RemoveFind="Remove `Find' command" HideDrives="Hide Drives in `My Computer'" HideNetHood="Hide Network Neighborhood" HideDesktop="Hide all items on Desktop" DisableClose="Disable Shut Down command" NoSaveSettings="Don't save settings at exit" DisableRegedit="Disable Registry editing tools" DisableMSDOS="Disable MS-DOS prompt" DisableSingleMSDOS="Disable single-mode MS-DOS applications" Run="Run" RunOnce="Run Once" RunServices="Run Services" RunListbox="Items to run at startup:" RunOnceListbox="Items to run once at startup:" RunServicesListbox="Services to run at startup:" SNMP="SNMP" Communities="Communities" CommunitiesListbox="Communities:" PermittedManagers="Permitted managers" PermittedManagersListbox="Permitted managers:" Traps_Public="Traps for `Public' community" Traps_PublicListbox="Trap configuration:" NoEntireNetwork="No `Entire Network' in Network Neighborhood" NoWorkgroupContents="No workgroup contents in Network Neighborhood" RestrictApps="Only run allowed Windows applications" RestrictAppsList="List of allowed applications:" DomainLogonConfirmation="Display domain logon confirmation" InternetMIB="Internet MIB (RFC1156)" ContactName="Contact Name:" Location="Location:" NoDomainPwdCaching="Disable caching of domain password" Summary Template files give you the settings possible for the policy. Windows NT System Policy Editor allows you to use multiple template files, and modify the current files, or even to add your own (see Chapter 34, "Creating Custom Policies"). Its capability to use multiple template files makes the System Policy Editor stand out in its ease of use and performance. Understanding what changes you want to make and the effect those changes will have is critical; otherwise, you may damage the systems, and the troubleshooting may be difficult.
